Hot Rolled 304 316L 310S Stainless Steel Channel with Polished Surface U Channel Bar

Certification : AISI

MOQ : 50 kg

Price : US $2.65 / kg

Model NO. : 304 316L 310S

Shape : U Channel

Technique : Hot Rolled

Surface Treatment : Polished

Specification : 30*30-100*100

Standard : ASTM A276

Condition : hot rolled

Size Range : 50*37*4.5 - 200*100*10

Thickness : 4.5mm - 10mm

Grades : 201, 304, 316

Processing : Bar cutting

Carbon Content : 0.08 max (304), 0.035 max (304L), 0.08 max (316), 0.035 max (316L)

Chromium Content : 18-20% (304/304L), 16-18% (316/316L)

Nickel Content : 8-11% (304), 8-13% (304L), 11-14% (316), 10-14% (316L)

Molybdenum Content : 2-3% (316/316L)

Contact Now

Stainless Steel Channel U Bar 304 316L 310S
Hot rolled 304 and 316L stainless steel U channels provide exceptional durability and reliability for industrial applications. Our laser fused non-tapered channels feature a smooth bead blast finish and are available in custom lengths up to 40 feet.
Product Specifications
Standard ASTM A276
Condition Hot rolled
Size Range 50*37*4.5 - 200*100*10
Thickness 4.5mm - 10mm
Grades 201, 304, 316
Processing Bar cutting
Stainless Steel U Channel Dimensions
Stainless steel channel dimensions include height, width, thickness, and length. The height and width are critical factors in determining whether you need a C-channel or U-channel configuration for your specific application requirements.
Manufacturing Standards
  • Hot rolled stainless steel channels meet dimensional tolerances per ASTM A276, ASTM A484, ASTM A479, ASME SA479
  • Laser fused stainless steel channels produced to ASTM A1069/A1069M/11
  • Grades conform to ASTM A276, ASTM A484, ASTM A479/A479M specifications
Chemical Composition
Grade C Mn Si P S Cr Mo Ni
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 - 20 - 8 - 11
SS 304L 0.035 max 2.0 max 1.0 max 0.045 max 0.03 max 18 - 20 - 8 - 13
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 11.00 - 14.00
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 1.0 max 16.00 - 18.00 16.00 - 18.00 10.00 - 14.00

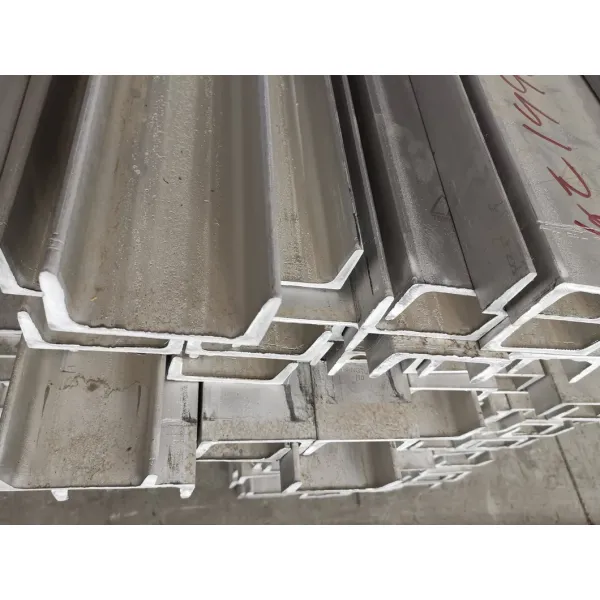

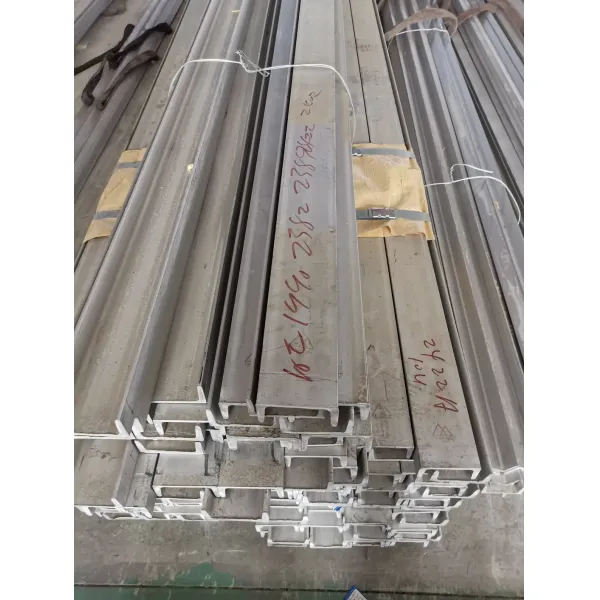

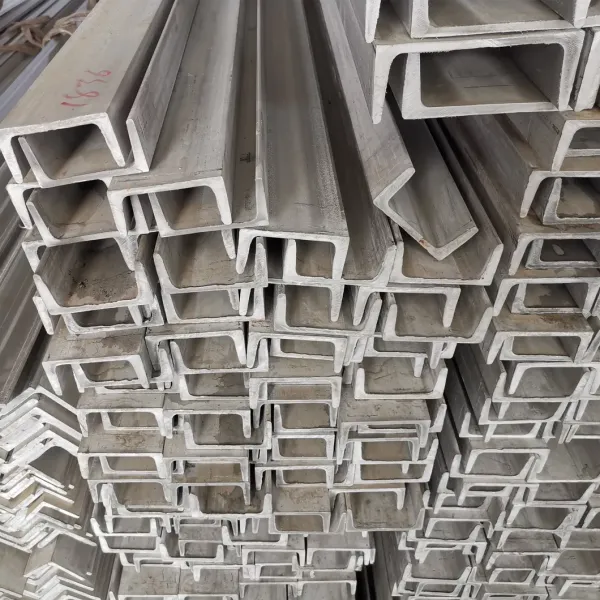

Product Images
Hot Rolled 304 316L 310S Stainless Steel Channel with Polished Surface U Channel Bar Hot Rolled 304 316L 310S Stainless Steel Channel with Polished Surface U Channel Bar Hot Rolled 304 316L 310S Stainless Steel Channel with Polished Surface U Channel Bar Hot Rolled 304 316L 310S Stainless Steel Channel with Polished Surface U Channel Bar
